Mount Azure Blob Storage into Windows Machine



Azure Blob Storage is an object storage solution for the cloud. Blob Storage allows you to store a massive amount of unstructured data, however initially there wasn't an option to mount the blob container directly into windows/Linux operating systems.

Storage explorer, azcopy and SDKs are used in-order to manage files and folders in blob containers from windows/Linux workstations.

Now Microsoft launched in public preview NFS 3.0 support for Azure Blob storage which helps us to mount the blob containers into windows/Linux machines.

Today we'll briefly go thorough the steps to be followed in-order to mount a azure blob container into windows machine.

Before following this article to mount a blob container ensure that you have a valid subscription and storage account with a blob container.

To mount a storage account container, you'll have to do these things.

1. Register NFS 3.0 protocol feature with your subscription.

1. Verify that the feature is registered.

2. Create an Azure Virtual Network (VNet).

3. Configure network security.

4. Create and configure a storage account that accepts traffic only from the VNet.

5. Create a container in the storage account.

6. Mount the container.

1. Register NFS 3.0 protocol feature with your subscription.

Since NFS 3.0 is in public preview in-order to use this feature you will need to manually register it into your subscription.

Below are the power-shell commands to register and activate NFS 3.0 in your subscription, I'm using azure cloud-shell as it has all the necessary power-shell modules required for Azure.

Connect-AzAccount (Not required if you are using cloudshell)

If your account is associated more than one subscription, identify and set the active subscription

$context = Get-AzSubscription -SubscriptionId <subscription-id>

Set-AzContext $context

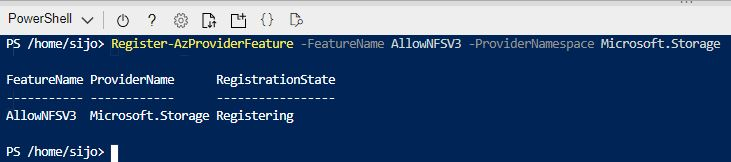

Register the AllowNFSV3 feature by using the following command.

Register-AzProviderFeature -FeatureName AllowNFSV3 -ProviderNamespace Microsoft.Storage

Register the PremiumHns feature by using the following command as well.

Register-AzProviderFeature -FeatureName PremiumHns -ProviderNamespace Microsoft.Storage

HNS - The hierarchical namespace allows you to define ACL and POSIX permissions on directories, subdirectories or individual files. You can also use role-based authentication and Azure Active Directory (Azure AD) to support resource management and data operations

Register the resource provider by using the following command.

Register-AzResourceProvider -ProviderNamespace Microsoft.Storage

It will take around 1 hour to complete registration process, you can run below commands to verify the status of registration.

Get-AzProviderFeature -ProviderNamespace Microsoft.Storage -FeatureName AllowNFSV3

Get-AzProviderFeature -ProviderNamespace Microsoft.Storage -FeatureName PremiumHns

2.Create a storage account

Supported region : US East, US Central, US West Central, Australia Southeast, North Europe, UK West, Korea Central, Korea South, and Canada Central

NFS 3.0 supported only in below account kind; General purpose v1,v2 and blobstorage are not supported at the moment.

Performance tier : Premium

Account kind : Block blob storage

Virtual Network and Security requirements

At the moment in-order to secure data account key authorization, Azure Active Directory (AD) security, and access control lists (ACLs) are not yet supported in accounts that have the NFS 3.0 protocol support enabled on them.

So only way to support this kind of storage account is by placing them into a subnet in a VNET and enable restrictions with the help of NSG, virtual machines from same VNET/subnet can access the blob containers created in the storage account.

Also you can enable VNET peering with other VNETS to get the blob containers accessed from other networks in azure, blob containers can be mounted to the machines in on-prem infrastructure in case if you have VPN/Express route connection via virtual network gateway into the VNET where storage account is contained.

Network security recommendations for blob storage - https://docs.microsoft.com/en-us/azure/storage/blobs/security-recommendations#networking

Note: NFS 3.0 feature cannot be enabled unless the storage account is placed into a VNET and subnet.

On advanced tab you must enable the HNS and NFS 3.0. If it is greyed out check the NFS 3.0 registration status and ensure that the storage account is placed into a VNET/Subnet.

Verify the below before submitting the settings for storage account creation, once it is deployed the account kind and related configurations cannot be reverted.

3. Create Blob container

Once the storage account is successfully provisioned, navigate to Data Lake storage --> select containers and click on +container to create a blob container

Ensure that the access level is set to private anonymous

4. Setup NFS 3.0 client on windows machines

In-order to mount a blob container into windows machine using NFS 3.0 you must install NFS 3.0 client into the windows machines.

Windows Servers

Open server manager --> Add roles and features --> select "Client for NFS" from feature tab and complete the installation and reboot the machine.

Windows 10 workstations

Open control panel --> add or remove programs --> Turn Windows features on or off --> select "client for NFS" check box from under the "Service for NFS" --> complete the installation and reboot the machine.

5. Mount the blob container

The blob container can be mounted into the server(W2K16)/workstation(windows 10) by entering below command from a administrative command prompt.

mount -o nolock <storage-account-name>.blob.core.windows.net:/<storage-account-name>/<container-name> *

Storage-account-name - replace with your storage account name

Container-name - replace with your container name

6. Write permission issue with mounted container

At this stage the mounted container blob will not have write permission, lets check it by creating a new file into it.

If you need write permissions, you may need to change the default UID and GID that Windows uses to connect to the share. To do this, run the following PowerShell commands as an administrator from the windows machine:

New-ItemProperty -Path HKLM:\SOFTWARE\Microsoft\ClientForNFS\CurrentVersion\Default -Name AnonymousUid -PropertyType DWord -Value 0

New-ItemProperty -Path HKLM:\SOFTWARE\Microsoft\ClientForNFS\CurrentVersion\Default -Name AnonymousGid -PropertyType DWord -Value 0

Lets now check the write access into the blob container mounted into a windows machine

Check out whether the file created is showing up in the container blob on Azure portal.

Note: We can expect new features such as Azure AD RBAC, ACL and account key in-order to secure the mounted blob containers also many of the configurations may change once the it is released to general; so always refer Microsoft documentations to get latest updates.

Reference :

https://docs.microsoft.com/en-us/azure/storage/blobs/network-file-system-protocol-support

https://docs.microsoft.com/en-us/azure/storage/blobs/network-file-system-protocol-support-how-to?tabs=windows

Guys kindly check it out and get familiar with the concepts of container blob mounting, the above link to Microsoft documentation will help you understand about mounting of blobs containers into Linux operating systems as well.
